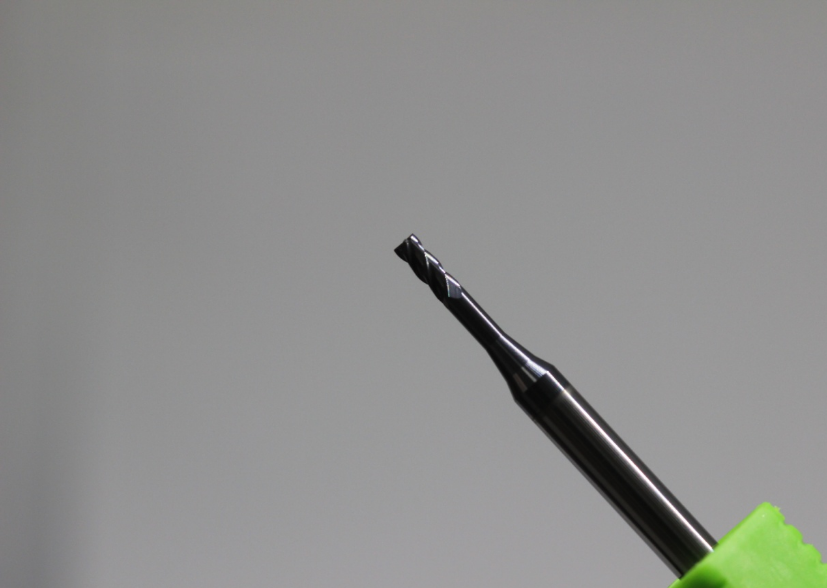

4 Flutes Radius Long Neck End Mill
Price range: $6.29 through $10.00
Estimated Delivery in May 21, 2026 - May 27, 2026.
Description
| Dia. of Cut(D) | Nose radius(r) | Valid cutting length(H) | Cut length | Neck length | Dia. of shank(d) | Overall length(L) | Flute amount(F) |
| 1 | 0.1 | 4 | 2.5 | 1.5 | 4 | 50 | 4 |
| 1 | 0.1 | 5 | 2.5 | 2.5 | 4 | 50 | 4 |
| 1 | 0.1 | 6 | 2.5 | 3.5 | 4 | 50 | 4 |
| 1 | 0.1 | 8 | 2.5 | 5.5 | 4 | 50 | 4 |
| 1 | 0.1 | 10 | 2.5 | 7.5 | 4 | 50 | 4 |
| 1 | 0.1 | 12 | 2.5 | 9.5 | 4 | 50 | 4 |
| 1 | 0.1 | 14 | 2.5 | 11.5 | 4 | 50 | 4 |
| 1 | 0.1 | 15 | 2.5 | 12.5 | 4 | 50 | 4 |
| 1 | 0.1 | 16 | 2.5 | 13.5 | 4 | 50 | 4 |
| 1 | 0.1 | 18 | 2.5 | 15.5 | 4 | 50 | 4 |
| 1 | 0.1 | 20 | 2.5 | 17.5 | 4 | 50 | 4 |
| 1.5 | 0.1 | 6 | 3.8 | 2.2 | 4 | 50 | 4 |
| 1.5 | 0.1 | 8 | 3.8 | 4.2 | 4 | 50 | 4 |
| 1.5 | 0.1 | 10 | 3.8 | 6.2 | 4 | 50 | 4 |
| 1.5 | 0.1 | 12 | 3.8 | 8.2 | 4 | 50 | 4 |
| 1.5 | 0.1 | 14 | 3.8 | 10.2 | 4 | 50 | 4 |
| 1.5 | 0.1 | 15 | 3.8 | 11.2 | 4 | 50 | 4 |
| 1.5 | 0.1 | 16 | 3.8 | 12.2 | 4 | 50 | 4 |
| 1.5 | 0.1 | 18 | 3.8 | 14.2 | 4 | 50 | 4 |
| 1.5 | 0.1 | 20 | 3.8 | 16.2 | 4 | 50 | 4 |
| 0 | |||||||
| 2 | 0.1 | 8 | 5 | 3 | 4 | 50 | 4 |
| 2 | 0.1 | 10 | 5 | 5 | 4 | 50 | 4 |
| 2 | 0.1 | 12 | 5 | 7 | 4 | 50 | 4 |
| 2 | 0.1 | 14 | 5 | 9 | 4 | 50 | 4 |
| 2 | 0.1 | 15 | 5 | 10 | 4 | 50 | 4 |
| 2 | 0.1 | 16 | 5 | 11 | 4 | 50 | 4 |
| 2 | 0.1 | 18 | 5 | 13 | 4 | 50 | 4 |
| 2 | 0.1 | 20 | 5 | 15 | 4 | 50 | 4 |
| 3 | 0.1 | 10 | 7.5 | 2.5 | 4 | 50 | 4 |
| 3 | 0.1 | 12 | 7.5 | 4.5 | 4 | 50 | 4 |
| 3 | 0.1 | 14 | 7.5 | 6.5 | 4 | 50 | 4 |
| 3 | 0.1 | 15 | 7.5 | 7.5 | 4 | 50 | 4 |
| 3 | 0.1 | 16 | 7.5 | 8.5 | 4 | 50 | 4 |
| 3 | 0.1 | 18 | 7.5 | 10.5 | 4 | 50 | 4 |
| 3 | 0.1 | 20 | 7.5 | 12.5 | 4 | 50 | 4 |
| 3 | 0.1 | 25 | 7.5 | 17.5 | 4 | 60 | 4 |
| 3 | 0.1 | 10 | 7.5 | 2.5 | 6 | 50 | 4 |
| 3 | 0.1 | 12 | 7.5 | 4.5 | 6 | 50 | 4 |
| 3 | 0.1 | 14 | 7.5 | 6.5 | 6 | 50 | 4 |
| 3 | 0.1 | 16 | 7.5 | 8.5 | 6 | 50 | 4 |
| 3 | 0.1 | 18 | 7.5 | 10.5 | 6 | 50 | 4 |
| 3 | 0.1 | 20 | 7.5 | 12.5 | 6 | 50 | 4 |
| 3 | 0.1 | 25 | 7.5 | 17.5 | 6 | 60 | 4 |
| 1 | 0.2 | 4 | 2.5 | 1.5 | 4 | 50 | 4 |
| 1 | 0.2 | 5 | 2.5 | 2.5 | 4 | 50 | 4 |
| 1 | 0.2 | 6 | 2.5 | 3.5 | 4 | 50 | 4 |
| 1 | 0.2 | 8 | 2.5 | 5.5 | 4 | 50 | 4 |
| 1 | 0.2 | 10 | 2.5 | 7.5 | 4 | 50 | 4 |
| 1 | 0.2 | 12 | 2.5 | 9.5 | 4 | 50 | 4 |
| 1 | 0.2 | 14 | 2.5 | 11.5 | 4 | 50 | 4 |
| 1 | 0.2 | 15 | 2.5 | 12.5 | 4 | 50 | 4 |
| 1 | 0.2 | 16 | 2.5 | 13.5 | 4 | 50 | 4 |
| 1 | 0.2 | 18 | 2.5 | 15.5 | 4 | 50 | 4 |
| 1 | 0.2 | 20 | 2.5 | 17.5 | 4 | 50 | 4 |
| 1.5 | 0.2 | 6 | 3.8 | 2.2 | 4 | 50 | 4 |
| 1.5 | 0.2 | 8 | 3.8 | 4.2 | 4 | 50 | 4 |
| 1.5 | 0.2 | 10 | 3.8 | 6.2 | 4 | 50 | 4 |
| 1.5 | 0.2 | 12 | 3.8 | 8.2 | 4 | 50 | 4 |
| 1.5 | 0.2 | 14 | 3.8 | 10.2 | 4 | 50 | 4 |
| 1.5 | 0.2 | 15 | 3.8 | 11.2 | 4 | 50 | 4 |
| 1.5 | 0.2 | 16 | 3.8 | 12.2 | 4 | 50 | 4 |
| 1.5 | 0.2 | 18 | 3.8 | 14.2 | 4 | 50 | 4 |
| 1.5 | 0.2 | 20 | 3.8 | 16.2 | 4 | 50 | 4 |
| 2 | 0.2 | 8 | 5 | 3 | 4 | 50 | 4 |
| 2 | 0.2 | 10 | 5 | 5 | 4 | 50 | 4 |
| 2 | 0.2 | 12 | 5 | 7 | 4 | 50 | 4 |
| 2 | 0.2 | 14 | 5 | 9 | 4 | 50 | 4 |
| 2 | 0.2 | 15 | 5 | 10 | 4 | 50 | 4 |
| 2 | 0.2 | 16 | 5 | 11 | 4 | 50 | 4 |
| 2 | 0.2 | 18 | 5 | 13 | 4 | 50 | 4 |
| 2 | 0.2 | 20 | 5 | 15 | 4 | 50 | 4 |
| 3 | 0.2 | 10 | 7.5 | 2.5 | 4 | 50 | 4 |
| 3 | 0.2 | 12 | 7.5 | 4.5 | 4 | 50 | 4 |
| 3 | 0.2 | 14 | 7.5 | 6.5 | 4 | 50 | 4 |
| 3 | 0.2 | 15 | 7.5 | 7.5 | 4 | 50 | 4 |
| 3 | 0.2 | 16 | 7.5 | 8.5 | 4 | 50 | 4 |
| 3 | 0.2 | 18 | 7.5 | 10.5 | 4 | 50 | 4 |
| 3 | 0.2 | 20 | 7.5 | 12.5 | 4 | 50 | 4 |
| 3 | 0.2 | 25 | 7.5 | 17.5 | 4 | 60 | 4 |
| 3 | 0.2 | 10 | 7.5 | 2.5 | 6 | 50 | 4 |
| 3 | 0.2 | 12 | 7.5 | 4.5 | 6 | 50 | 4 |
| 3 | 0.2 | 14 | 7.5 | 6.5 | 6 | 50 | 4 |
| 3 | 0.2 | 16 | 7.5 | 8.5 | 6 | 60 | 4 |
| 3 | 0.2 | 18 | 7.5 | 10.5 | 6 | 50 | 4 |
| 3 | 0.2 | 20 | 7.5 | 12.5 | 6 | 60 | 4 |
| 3 | 0.2 | 25 | 7.5 | 17.5 | 6 | 60 | 4 |
